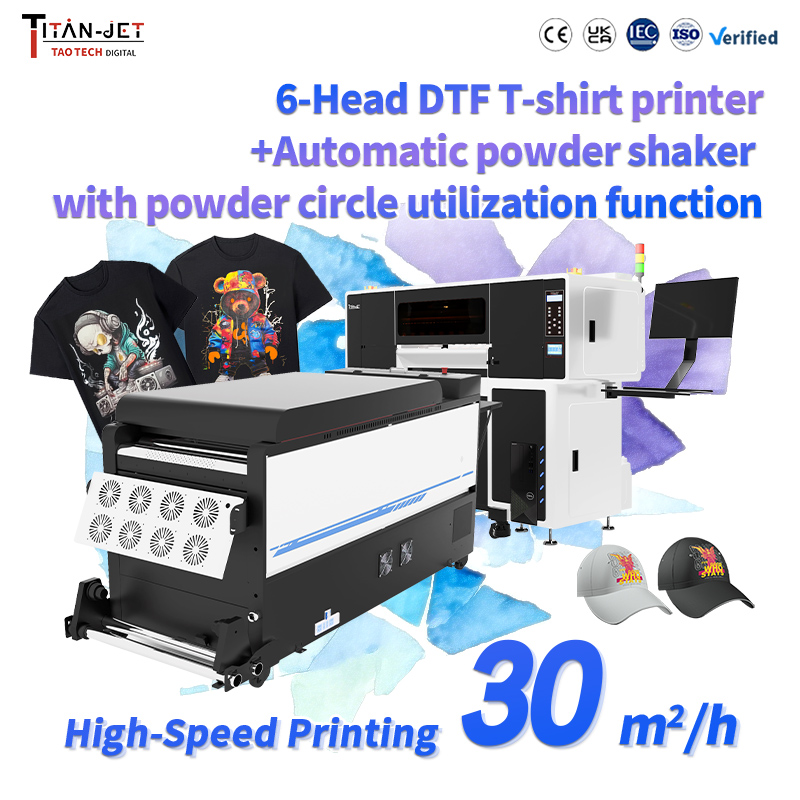

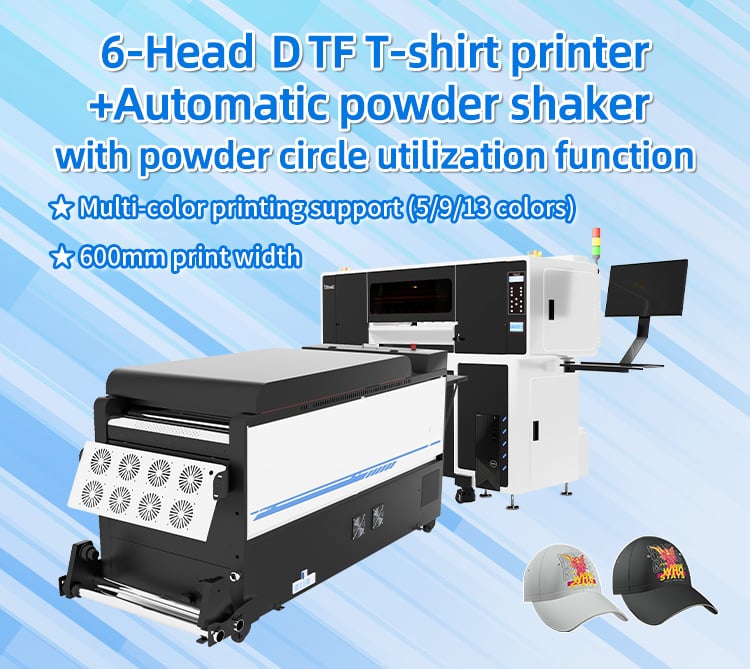

6 head High Speed DTF

· Print + Powder Shake Integration— Printer and automatic powder shaker work together to form a complete production line

· No Plate-Making— Ready to print once the design is loaded — no film output, no screen making, fast sampling

· White + Color + Spot Color — One-Pass Printing

· Print Width up to 600mm— Standard industrial width, suitable for both small and large patterns

· 6 Epson i3200 Industrial-Grade Printheads— 2 Color + 2 White + 2 Spot Color, high precision, speed, and efficiency

· Print Speed 4pass: 30m²/h— Daily output exceeds 240m², dual-white ink parallel operation ensures dark fabric coverage without compromising quality

· High Precision — 2400 DPI

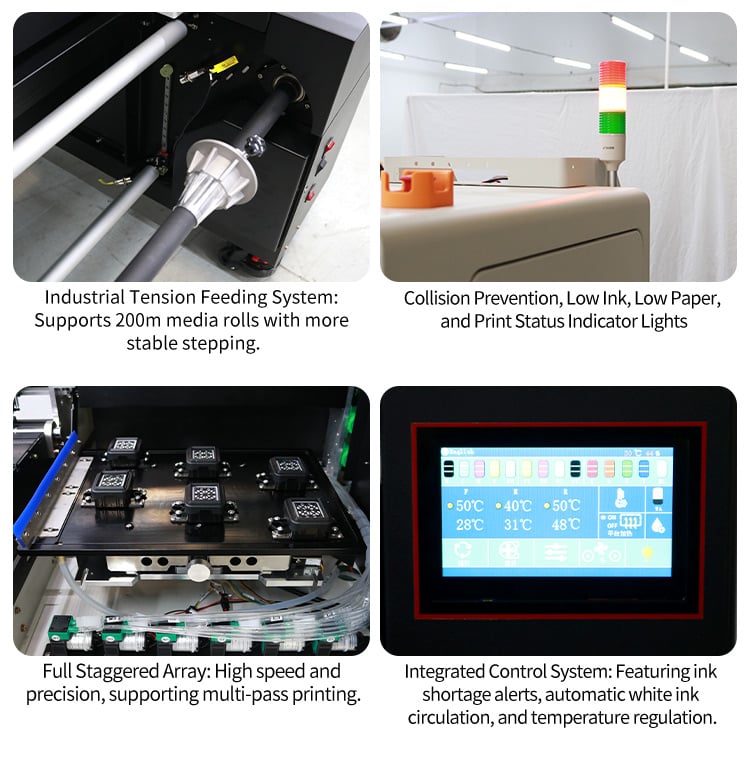

· Fully Automatic Tension System— Smoother and more stable media feeding

· Renowned Brand Fiber-Optic Control Board— More stable system with highly integrated functions

· Integrated Mold Platform— Smoother printing with front/middle/rear three-zone heating for better ink absorption

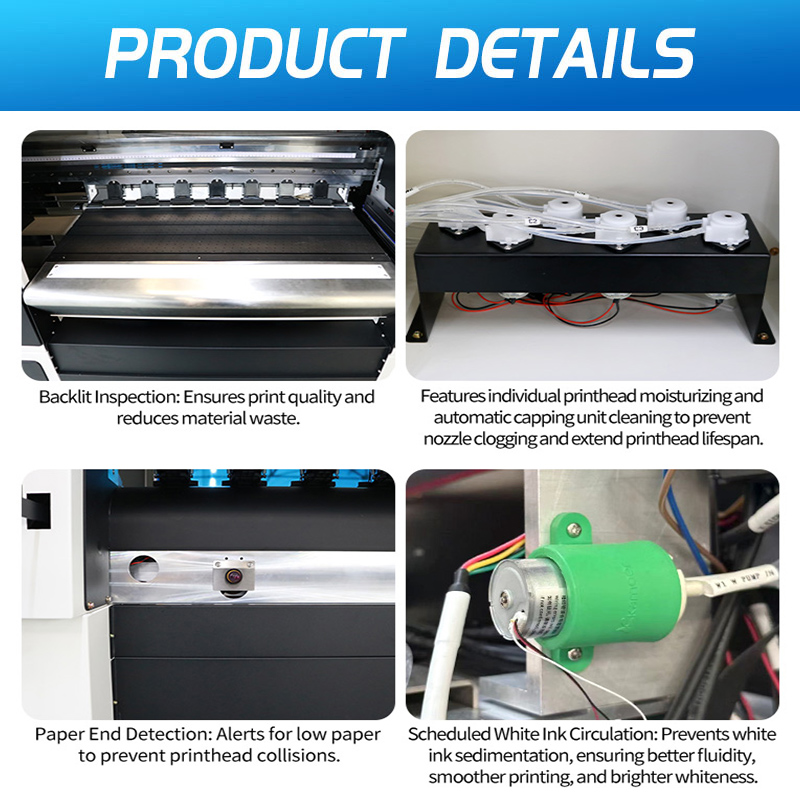

· Automatic Printhead Cleaning + Moisturizing— Dual maintenance functions, safe to use even during long holidays

· White Ink Circulation & Stirring System— Effectively prevents sedimentation, ensures smoother printing and more uniform whiteness

· HIWIN Silent Guide Rails— Noiseless operation, smoother running, extends machine service life

· High-Power Servo Motor— High-precision drive with linear decoding, higher accuracy, minimal length error, stable performance

· Intelligent Digital Temperature Control System— Convenient real-time temperature monitoring, simple and quick operation

· Patented Automatic Powder Recycling Technology— Single fill, continuous circulation, saves labor, improves efficiency

· Fume Purification System— Electronic purifier, oil-smoke separation, dual filtration, zero consumables

· Factory Direct — 20 Years of R&D Experience

Widely used in garment printing and digital textile printing industries

DTF technology digitally prints the color design onto a transfer film, followed by a white ink layer, effectively solving the challenge of color rendering on dark fabrics. Digital textile printing is widely applicable to materials including nylon, polyester, cotton, leather, swimsuit fabric, neoprene, PVC, EVA, and more.

Application Scenarios:

· Garment Customization— T-shirts, hoodies, polo shirts, school uniforms, workwear, and more

· Sportswear— Sports jerseys, swimwear, wet suits, etc.

· Bags, Shoes & Hats— Handbags, backpacks, shoe upper transfers, etc.

· Home Decor— Home textiles, decorative fabrics, etc.

· Cultural & Creative Products— Creative merchandise, gift customization, etc.

· Cross-Border E-Commerce— Small-batch, multi-variant order production

· Fast Sampling: Ready to print as soon as the design is loaded — no film output, no screen making

· Space Saving: Compact footprint — multiple machines can fit in a small space

· Labor Saving: One operator can manage multiple machines — eliminates complex processes like screen stretching, plate-making, plate exposure, paste mixing, screen printing, and fabric handling

· Vibrant Colors: Color saturation increased by over 50%

· Excellent Color Fastness: Wash and rub fastness up to Grade 4-5 standard — no cracking after washing

· Dark Fabric Solution: The "white base isolation layer" technology enables high-saturation color reproduction on dark fabrics

Q1: What is the difference between the 60E6-TH and a crystal label printer?

A:The 60E6-TH is a DTF (Direct to Film) printer designed specifically for the garment printing industry. It works with an automatic powder shaker and transfers designs from PET film onto garment fabrics via heat pressing. A crystal label printer, on the other hand, is used to produce crystal label stickers that are applied to hard, smooth surfaces (metal, glass, ceramics, etc.). They differ completely inprint media, supporting equipment, and application scenarios.

Q2: Who is this machine best suited for?

A:The 60E6-TH is ideally suited for garment customization factories, T-shirt printing workshops, cross-border e-commerce sellers, and cultural & creative product manufacturers. Its ultra-high speed of 30m²/h, 6-head configuration, automatic powder shaker, and extended oven design are built for high-efficiency, high-volume garment printing production.

Q3: What does 30m²/h mean in practical terms?

A:At4pass mode with 30m²/h, paired with the 1.14m extended oven, based on8 hours of continuous operation, the daily output can reach over 240m². This speed is3 to 5 timesthat of standard dual-head models, enabling you to easily take on large-volume orders, complete deliveries in a short time, and significantly shorten production cycles.

Q4: What are the advantages of DTF over traditional screen printing?

A:DTF offers the following key advantages over traditional screen printing:

No plate-making: Ready to print once the design is loaded — fast sampling, ideal for small-batch, multi-variant orders

Simplified process: Eliminates complex steps like screen stretching, plate-making, plate exposure, and paste mixing

Dark fabric solution: White ink base layer technology enables vibrant colors on dark fabrics

High color fastness: Wash and rub fastness up to Grade 4-5 standard

Labor saving: One operator can manage multiple machines, significantly reducing labor costs

Q5: How are the 6 printheads configured?

A:The 60E6-TH is equipped with6 Epson i3200 industrial-grade printheads configured as2 Color + 2 White + 2 Spot Color:

Dual white ink printheads work in parallel for high-speed, uniform white base coverage — eliminating the bottleneck of dark fabric orders

Dual color printheads work together to ensure fast completion of complex color patterns

Dual spot color printheads provide richer color expression

Combined with30m²/h high-speed output, even dark fabric orders can be delivered quickly

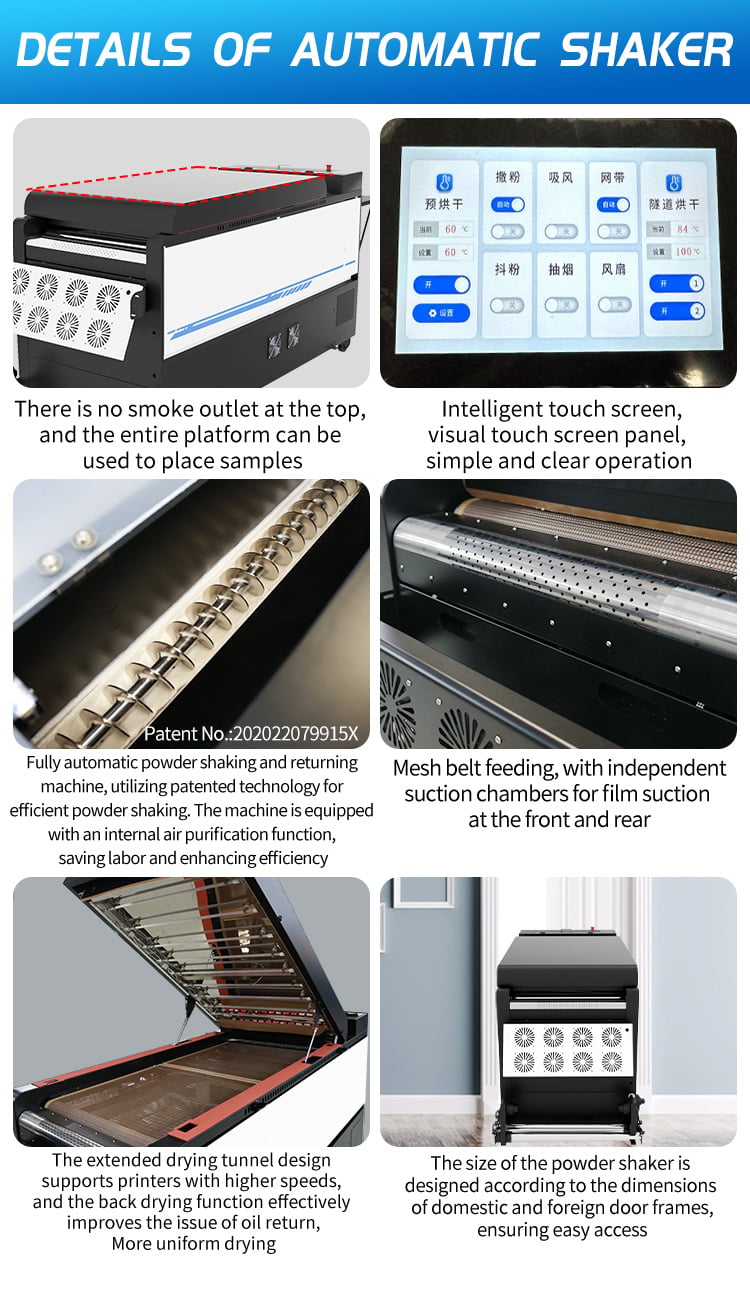

Q6: What are the advantages of the automatic powder shaker?

A:The automatic powder shaker features Taotech Digital's patented automatic powder recycling technology(Patent No.: 202022079915X), with key advantages including:

Single fill, continuous circulation— significantly saves labor and improves efficiency

Extended oven design(1.14m) — supports thorough drying for30m²/h high-speed printing

Dual-layer top & bottom drying + constant-temperature quartz tubes— thorough and uniform drying, effectively reduces oil-back issues

Electronic fume purifier— oil-smoke separation, dual filtration, zero consumables

Smart touch screen— simple and clear operation

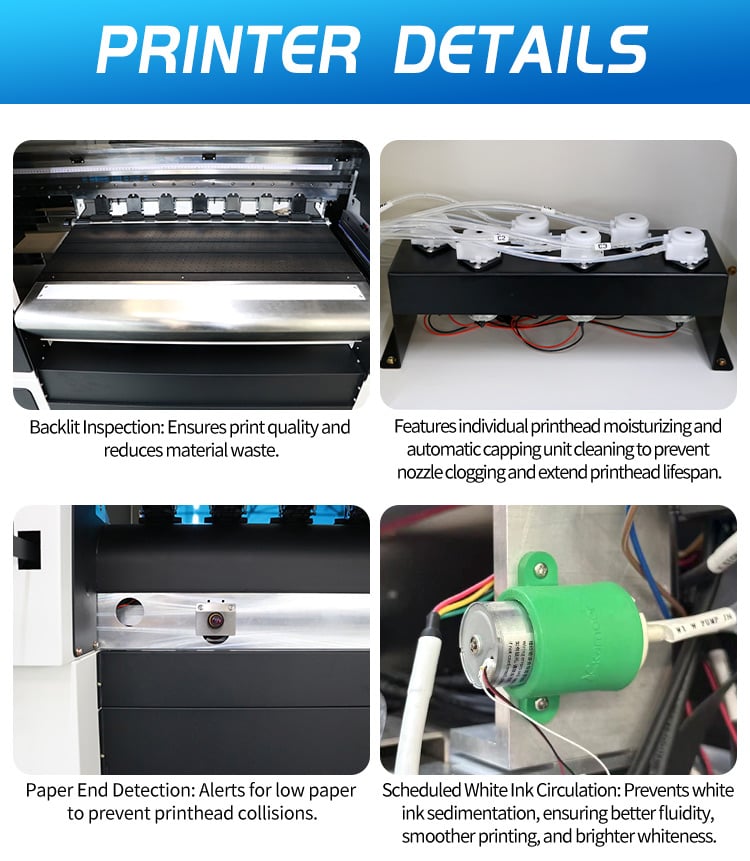

Q7: Is daily maintenance complicated? Are the printheads prone to clogging?

A:The 60E6-TH features automatic printhead cleaning + moisturizing dual maintenance functions, so you can rest easy even during long holidays. Combined with the white ink circulation & stirring system, it effectively prevents white ink sedimentation, eliminates clogging, and ensures continuous printing without ink breaks. Daily maintenance is simple — just maintain an optimal working environment of temperature 25℃-30℃ and humidity 50%-75%.

Q8: What is the return on investment (ROI)?

A:As a6-head high-speed industrial-grade model, the ultra-high speed of 30m²/h delivers significant productivity advantages. At 4pass mode, daily output reaches over 240m²—3 to 5 times that of standard dual-head models. DTF printing costs are well-controlled while market pricing remains attractive. With sufficient orders, the payback period is short and profit margins are substantial.

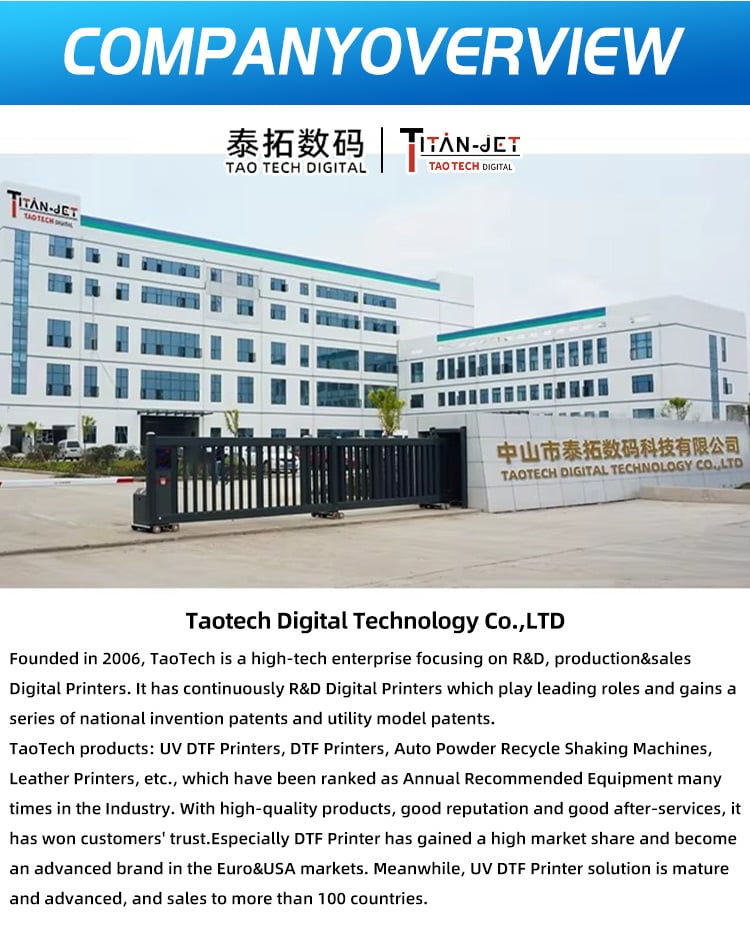

Q9: What are the manufacturer's credentials? Is after-sales support reliable?

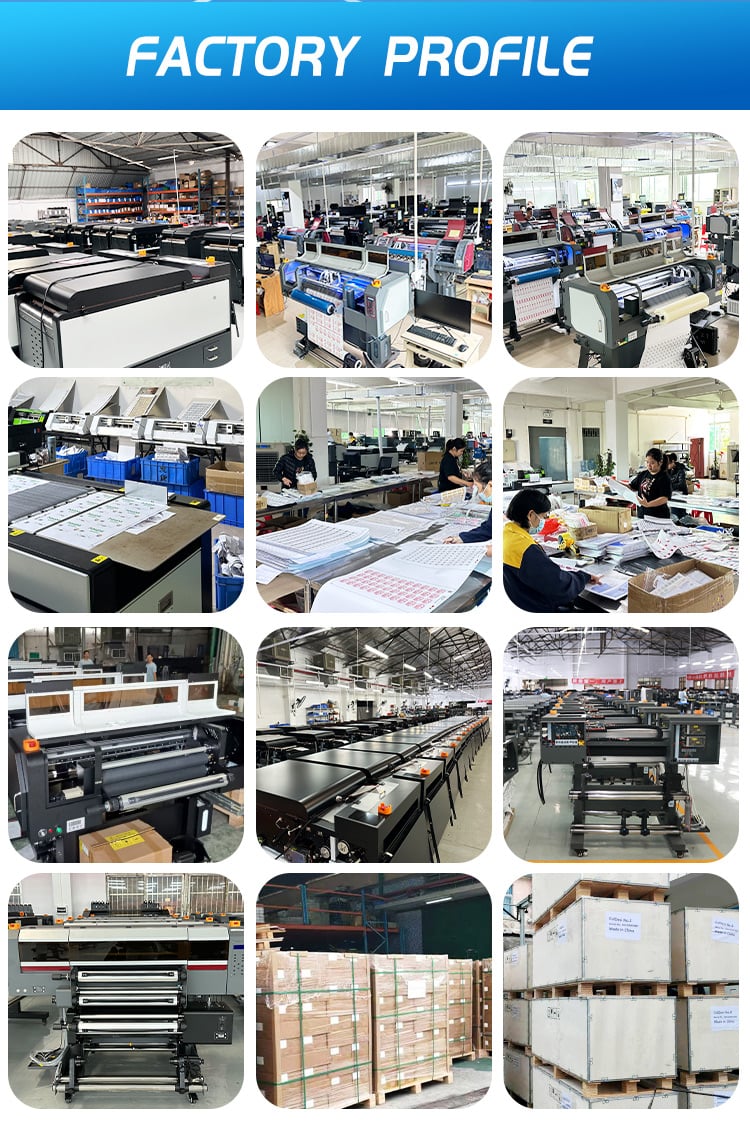

A:Taotech Digital was founded in 2006 and has20 years of R&D experience in the printing equipment industry. It is a high-tech enterprise dedicated to the R&D, production, and sales of various industrial digital inkjet printing equipment. The company occupies a standardized production facility of over 8,000 square meters and was recognized as Zhongshan Engineering Technology Research Center in 2016. Our DTF equipment holds a high market share, has successfully established itself as a leading brand in European and American markets, and has a business network covering more than 100 countries and regions worldwide. Our equipment has passed EU CE Safety CertificationandISO9001 Quality Management System Certification. We offer a1-year whole-machine warranty and comprehensive pre-sales and after-sales support.

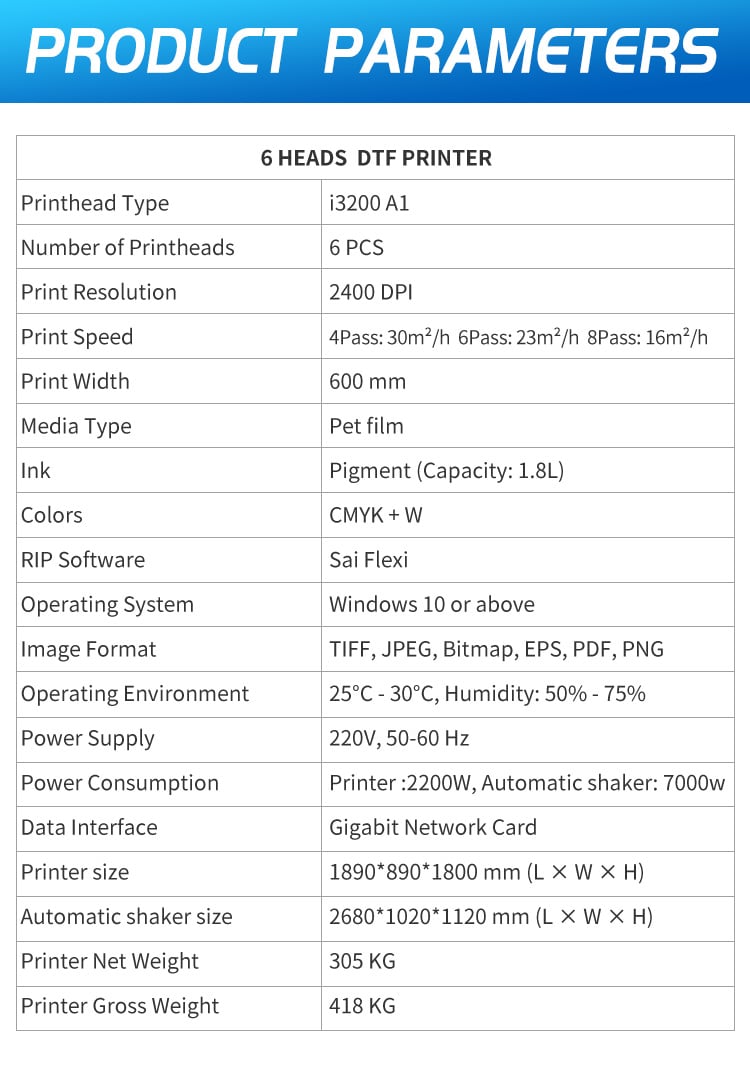

Q10: What are the machine dimensions and weight? What are the installation requirements?

A:Printer size:1890×890×1800mm (L×W×H); Powder shaker size:2680×1020×1120mm (L×W×H). Printer net weight:305KG; Gross weight:418KG. Please ensure sufficient operating space, place the machine on a flat and solid floor, and maintain a stable power supply (Printer: 2200W, Powder shaker: 7000W). The powder shaker is designed according to standard door frame dimensions for easy entry and convenient transportation.
