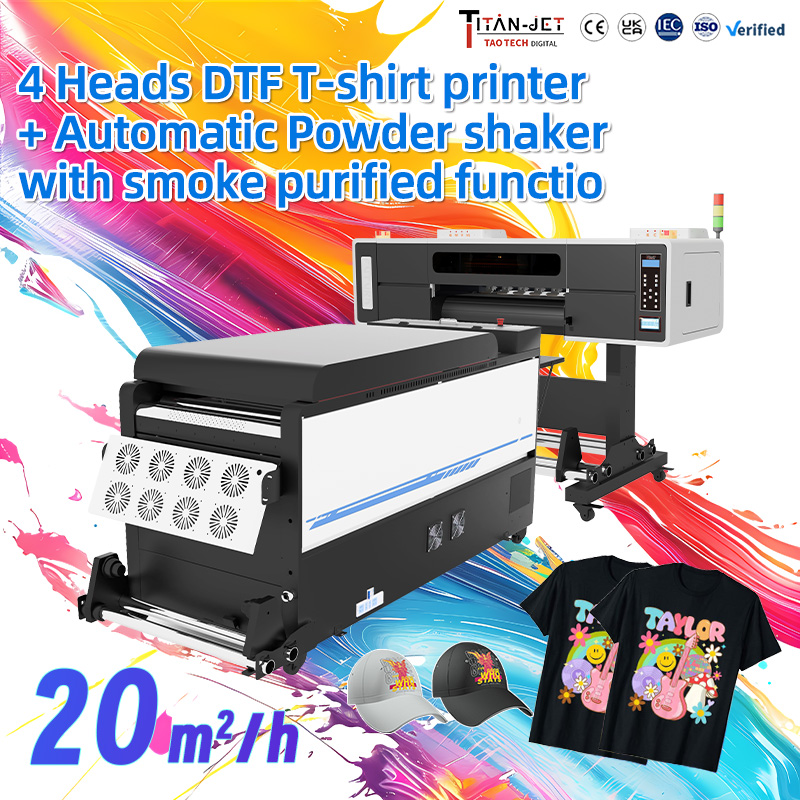

4 head High Speed DTF

· Print + Powder Shake Integration — Printer and automatic powder shaker work together to form a complete production line

· No Plate‑Making — Ready to print once the design is loaded — no film output, no screen making, fast sampling

· White + Color — One‑Pass Printing

· Print Width up to 600mm — Standard industrial width, suitable for both small and large patterns

· 4 Epson i3200 Industrial‑Grade Printheads — High precision, high speed, stable and reliable

· Print Speed 6pass: 20m²/h — Daily output exceeds 160m², perfect balance of efficiency and cost

· High Precision — 2400 DPI

· Renowned Brand Fiber‑Optic Control Board — More stable system with highly integrated functions

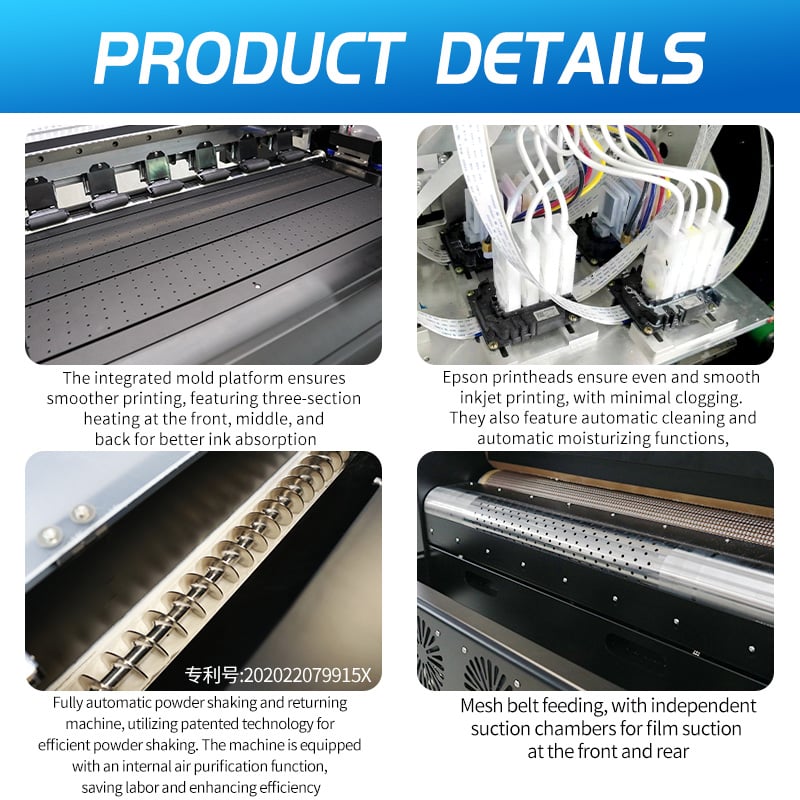

· Integrated Mold Platform — Smoother printing with front/middle/rear three‑zone heating for better ink absorption

· Automatic Printhead Cleaning + Moisturizing — Dual maintenance functions, extending printhead service life

· White Ink Circulation & Stirring System — Effectively prevents sedimentation, ensures smoother printing and more uniform whiteness

· Collision, Ink Shortage, Paper Shortage, and Printing Status Indicator Lights — Real‑time equipment monitoring for unattended operation

· Integrated CNC System — Ink shortage alarm, white ink circulation, and temperature control in one

· Patented Automatic Powder Recycling Technology — Single fill, continuous circulation, saves labor, improves efficiency

· Fume Purification System — Electronic purifier, oil‑smoke separation, dual filtration

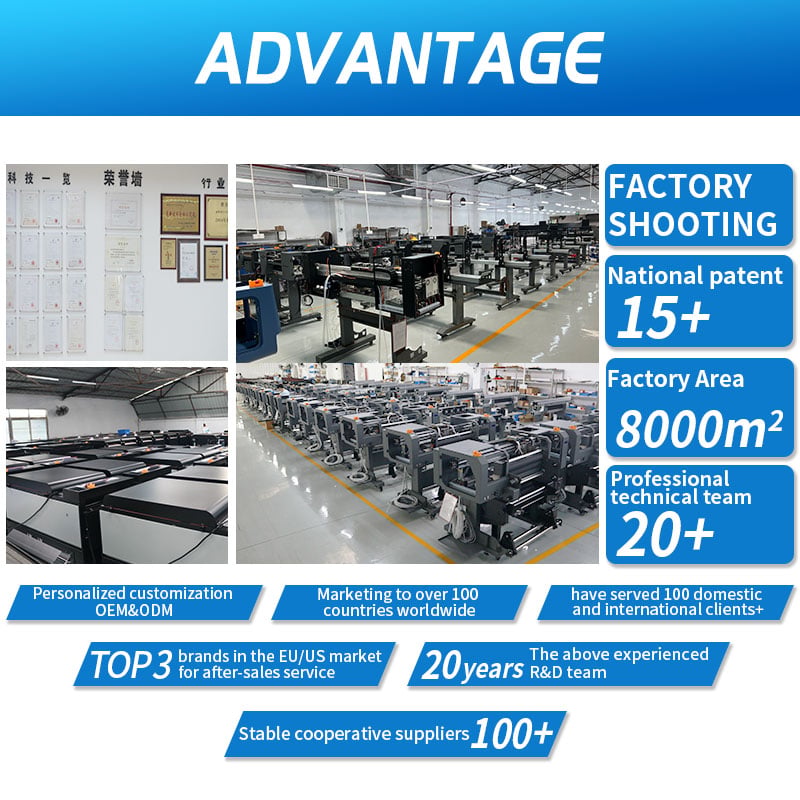

· Factory Direct — 20 Years of R&D Experience

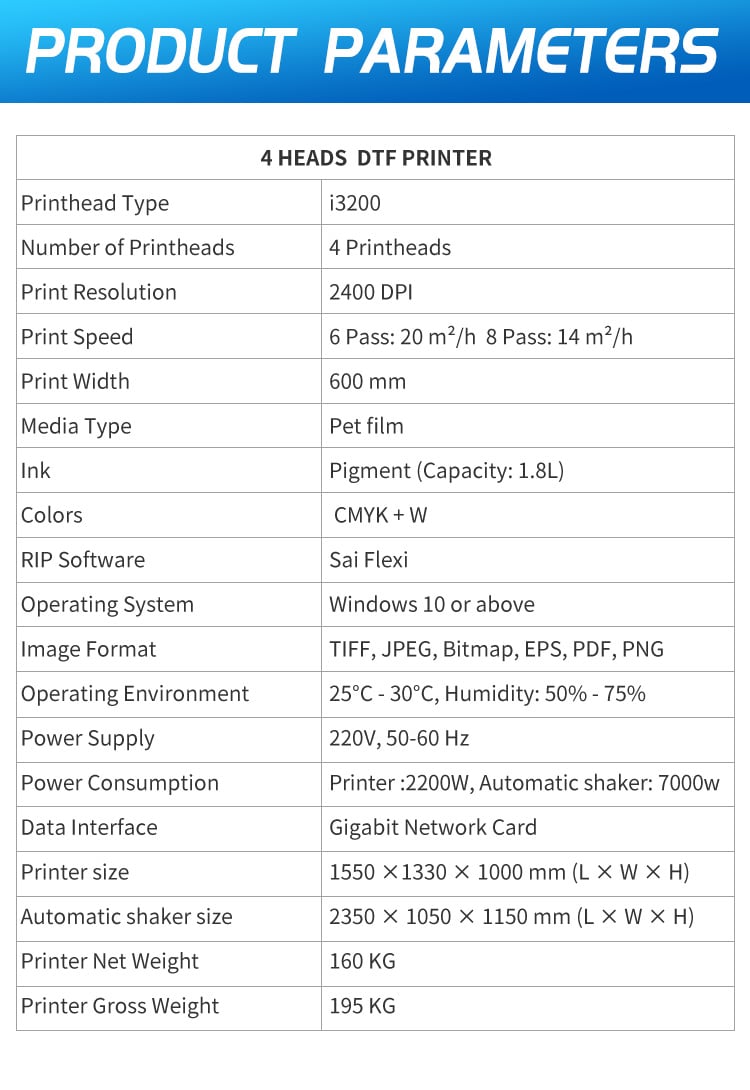

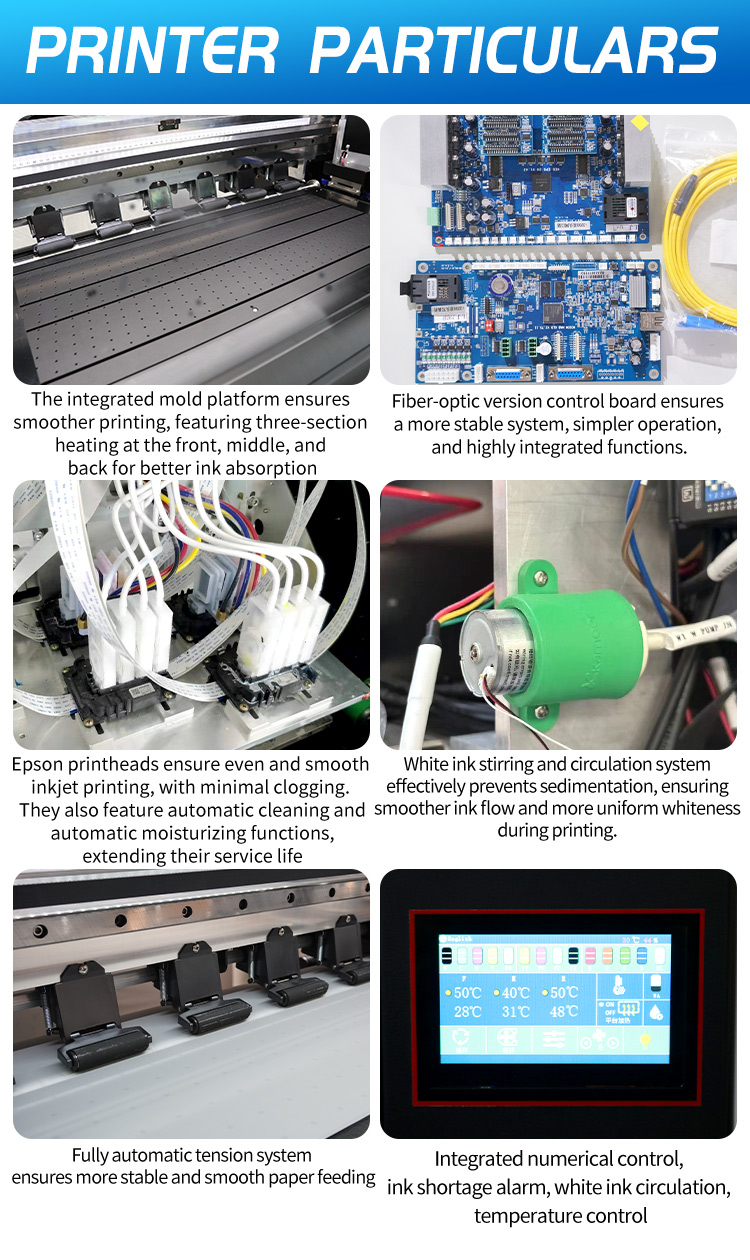

· Printer Core Configuration:

· Printheads:4 Epson i3200 industrial‑grade printheads — even ink ejection, smooth printing, not prone to clogging

· Print Speed:6pass: 20m²/h — daily output exceeds 160m²

· Printhead Maintenance:Automatic cleaning + moisturizing functions — extend printhead life, reduce maintenance costs

· Control Board:Renowned brand fiber‑optic board — stable system, highly integrated functions, simple operation

· Platform:Integrated mold platform — smoother printing with front/middle/rear three‑zone heating for better ink absorption

· White Ink System:Circulation & stirring system — effectively prevents sedimentation, smoother ink flow, more uniform whiteness

· Warning System:Collision, ink shortage, paper shortage, and printing status indicator lights — real‑time monitoring, quick response

· Control System:Integrated CNC — ink shortage alarm, white ink circulation, and temperature control in one

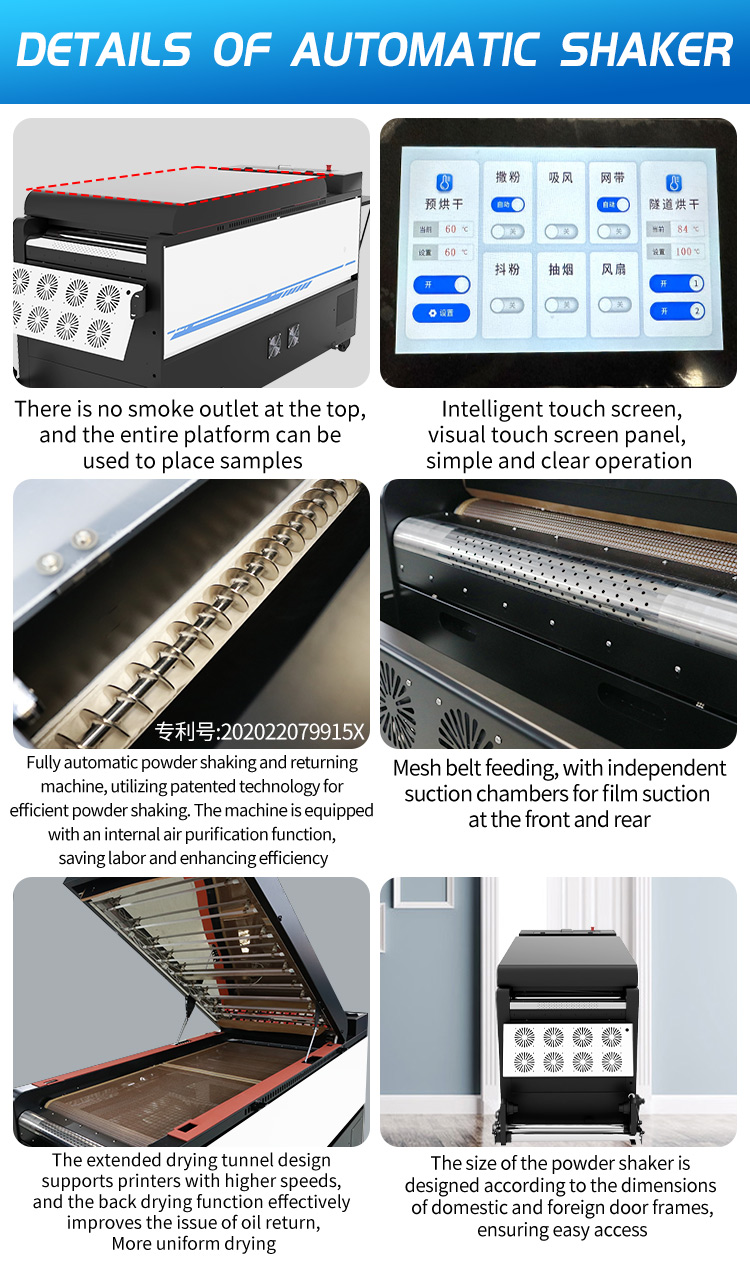

Automatic Powder Shaker Core Configuration:

· Patented Technology:Taotech Digital's patented automatic powder recycling technology — single fill, continuous circulation, saves labor, improves efficiency

· Oven Design:Extended oven design supports higher‑speed printing; bottom‑heating function effectively reduces oil‑back issues and ensures more uniform drying

· Feeding System:Mesh belt feeding with front/rear independent suction chambers

· Platform Design:No smoke outlet on top; the entire platform can hold sample products

· Control System:Smart touch screen — visual interface, simple and clear operation

· Size Design:Designed according to standard door frame dimensions for easy entry and convenient transportation

Widely used in garment printing and digital textile printing industries

DTF technology digitally prints the color design onto a transfer film, followed by a white ink layer, effectively solving the challenge of color rendering on dark fabrics. Digital textile printing is widely applicable to materials including nylon, polyester, cotton, leather, swimsuit fabric, neoprene, PVC, EVA, and more.

Application Scenarios:

· Garment Customization:T‑shirts, hoodies, polo shirts, school uniforms, work wear, etc.

· Sportswear:Sports jerseys, swimwear, wet suits, etc.

· Bags, Shoes & Hats:Handbags, backpacks, shoe upper transfers, etc.

· Home Decor:Home textiles, decorative fabrics, etc.

· Cultural & Creative Products:Creative merchandise, gift customization, etc.

· Cross‑Border E‑Commerce:Small‑batch, multi‑variant order production

· Fast Sampling:Ready to print as soon as the design is loaded — no film output, no screen making

· Space Saving:Compact footprint — multiple machines can fit in a small space

· Labor Saving:One operator can manage multiple machines — eliminates complex processes like screen stretching, plate‑making, plate exposure, paste mixing, screen printing, and fabric handling

· Vibrant Colors:Color saturation significantly enhanced

· Excellent Color Fastness:Wash and rub fastness up to Grade 4‑5 standard

· Dark Fabric Solution:The white base isolation layer technology enables high‑saturation color reproduction on dark fabrics

Q1: What is the difference between this machine and the 6‑head model (60E6‑TH)?

A:The 60E4‑TH is a 4‑head industrial‑grade model with 4 printheads, a speed of 20m²/h in 6pass mode, and CMYK+W ink configuration. It is more suitable for small to medium‑sized processing factories and start‑ups. The 6‑head model has 6 printheads (2 Color + 2 White + 2 Spot Color) and reaches 30m²/h, designed for large factories pursuing maximum throughput.

Q2: Who is this machine best suited for?

A:It is ideally suited for small to medium‑sized garment customization factories, T‑shirt printing workshops, cross‑border e‑commerce sellers, and start‑up entrepreneurs. Its 20m²/h print speed and automatic powder shaker offer a great balance between production efficiency and investment cost.

Q3: What does 20m²/h mean in practical terms?

A:At 6pass mode with 20m²/h, based on 8 hours of continuous operation, the daily output can reach over 160m², which is sufficient for most small to medium‑volume orders.

Q4: What are the advantages of DTF over traditional screen printing?

A:DTF offers no plate‑making, simplified processes, the ability to print on dark fabrics, high color fastness (Grade 4‑5), and labor savings — one operator can manage multiple machines.

Q5: How are the 4 printheads configured?

A:The 4 Epson i3200 printheads are configured as color + white, supporting CMYK+W 5‑color printing. The white base layer combined with color patterns solves the challenge of color rendering on dark fabrics.

Q6: What are the advantages of the automatic powder shaker?

A:It features Taotech Digital's patented automatic powder recycling technology — single fill, continuous circulation. The extended oven with bottom‑heating function effectively reduces oil‑back issues and ensures uniform drying. It also offers mesh belt feeding, independent suction chambers, and a smart touch screen for simple operation.

Q7: Is daily maintenance complicated? Are the printheads prone to clogging?

A:The machine features automatic printhead cleaning + moisturizing dual maintenance functions, combined with the white ink circulation & stirring system, effectively preventing sedimentation and clogging. Simply maintain an optimal working environment of temperature 25‑30°C and humidity 50‑75%.

Q8: What is the return on investment (ROI)?

A:As a 4‑head industrial‑grade model with daily output exceeding 160m², the overall cost is well‑controlled while market pricing remains attractive. It is an ideal choice for small to medium‑sized processing factories and start‑ups seeking a quick payback.

Q9: What are the manufacturer's credentials? Is after‑sales support reliable?

A:Taotech Digital was founded in 2006 with 20 years of R&D experience in the printing equipment industry. It is a high‑tech enterprise with products certified by EU CE and ISO9001. Our business network covers more than 100 countries and regions. We offer a 1‑year whole‑machine warranty and comprehensive pre‑sales and after‑sales support.

Q10: What are the machine dimensions and weight? What are the installation requirements?

A:Printer size: 1550×1310×1000mm (L×W×H); Powder shaker size: 2350×1050×1150mm (L×W×H). Printer net weight: 160KG; gross weight: 195KG. Please ensure a flat, solid floor and stable power supply (printer: 2200W, shaker: 7000W). The shaker is designed to fit standard door frames for easy entry and transportation.
