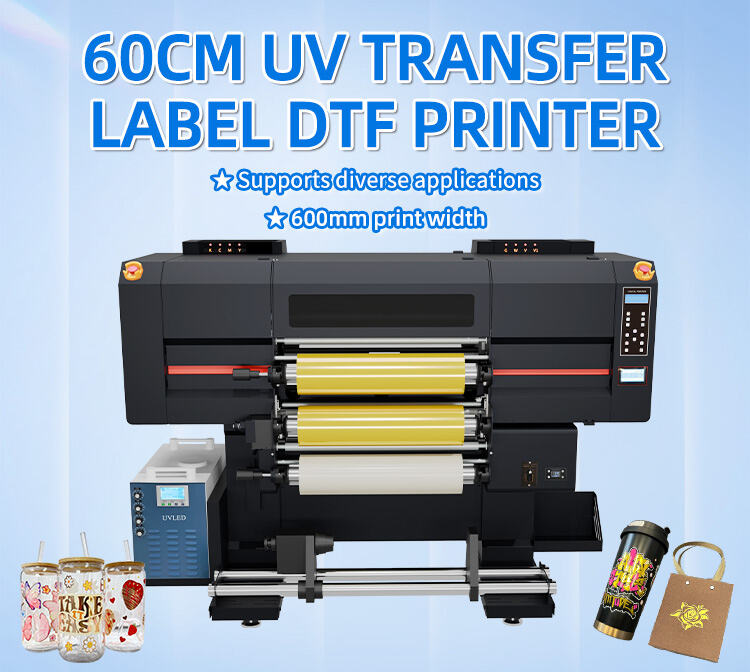

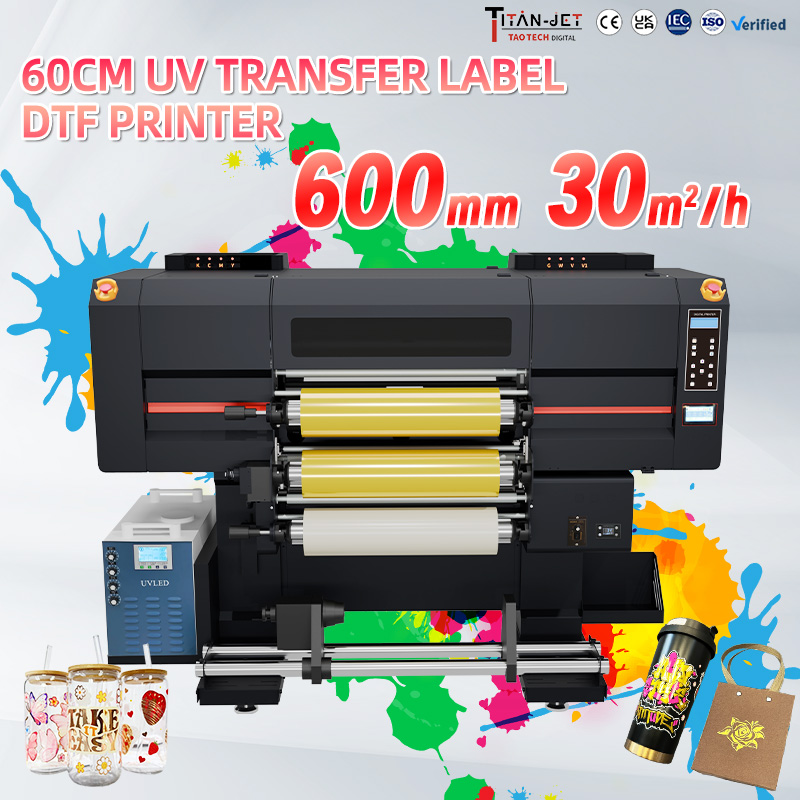

Taotech Digital 60E6-K UV Label Double‑Lamination All‑in‑One Printer is an industrial‑grade UV label production device that integrates six major functions: printing, hot stamping, laminating, waste stripping, film coating, and winding. Engineered by Taotech Digital — a brand with 20 years of R&D experience in the printing equipment industry — this machine is equipped with 6 Epson i3200 industrial‑grade printheads and a print width of 600mm, supporting 10‑color printing and various special finishes including gold stamping and silver stamping.
The 60E6‑K is renowned as the “Speed King, Mass Production Powerhouse”, achieving print speeds of up to 30m²/h in 4pass mode. It is specifically designed for factory‑level, high‑volume commercial production. Featuring a honeycomb widened platform, industrial heavy‑duty integrated frame, and heavy‑duty sensor‑based feeding system, the machine can load up to 200 meters of AB film in a single batch, drastically reducing material change frequency. It is the ideal choice for large‑scale UV label processing facilities pursuing maximum throughput and production efficiency.
6‑in‑1 Function — Printing / Hot Stamping / Laminating / Waste Stripping / Film Coating / Winding
No Extra Equipment Needed — One machine replaces a laminator + foil stamper
White + Color + Varnish + Glue — One‑Pass Printing
Print Width up to 600mm — Ultra‑wide format, exceptional capacity
6 Epson i3200 Industrial‑Grade Printheads — Speed up to 30m²/h, mass production powerhouse

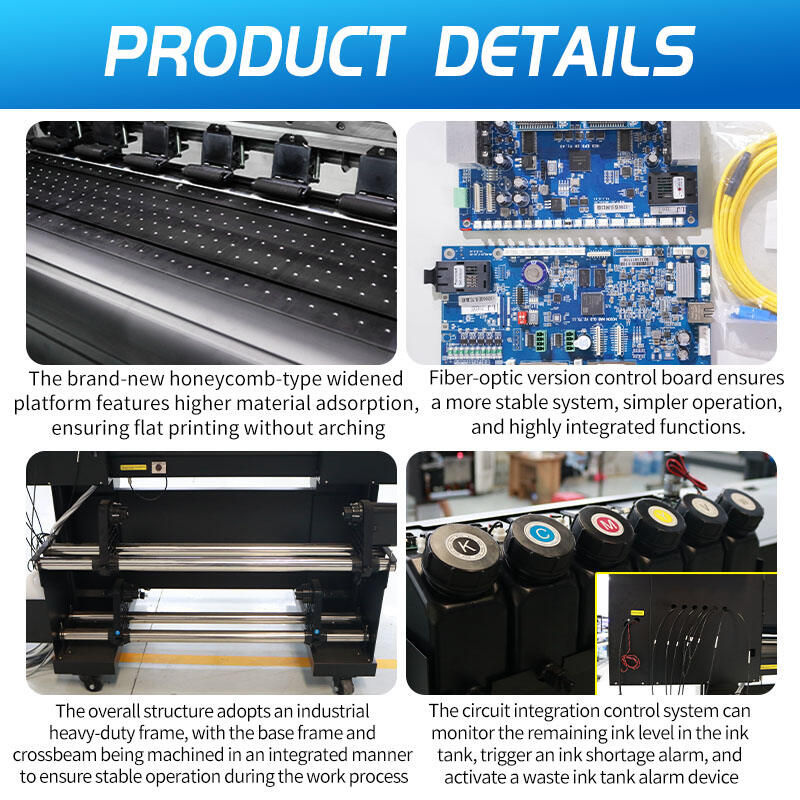

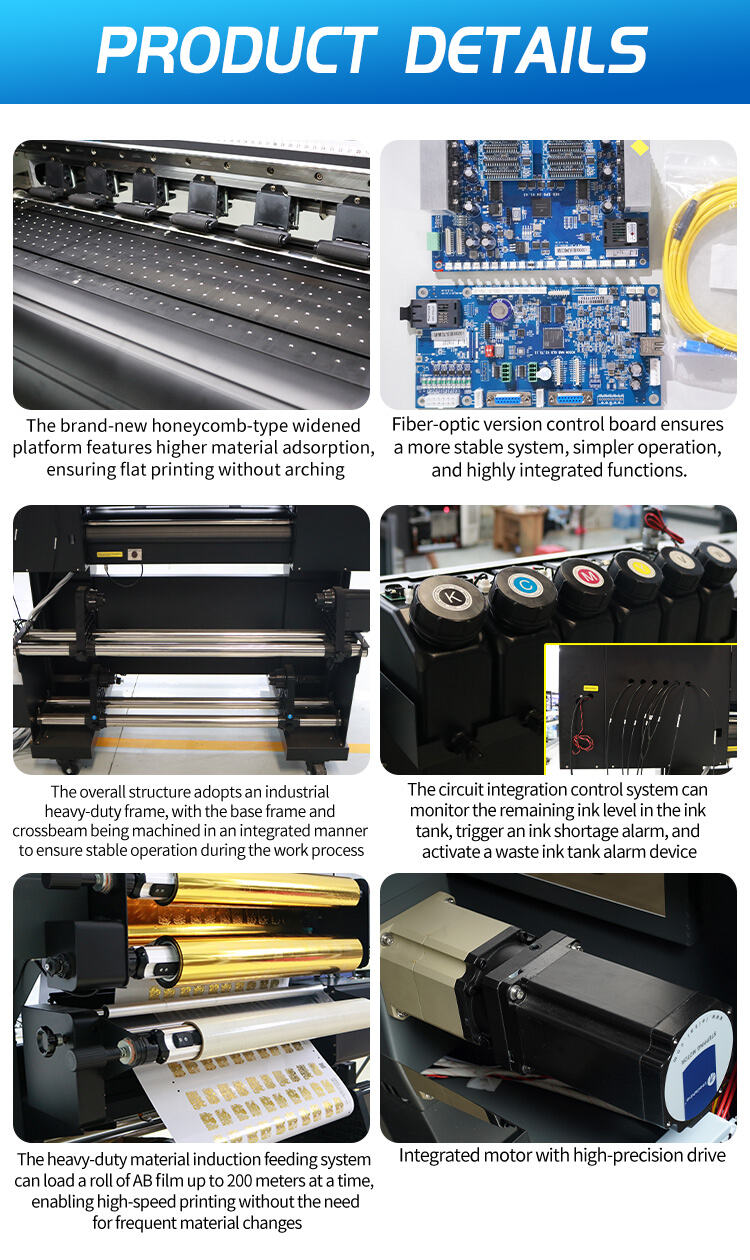

Honeycomb Widened Platform — Enhanced material adhesion, flat printing without arching
Industrial Heavy‑Duty Integrated Frame — Base and crossbeam machined as one piece, rock‑solid at high speeds
High Precision — 2400 DPI
Gold / Silver Stamping & Special Finishes — Premium metallic effects
Heavy‑Duty Sensor‑Based Feeding System — Load 200m of AB film at once, eliminate frequent material changes
Integrated Circuit Control System — Ink shortage alarm, waste ink tank alarm for unattended operation
Factory Direct — 20 Years of R&D Experience
Widely used across various industries, especially for high‑volume, factory‑level production
Transferable onto a wide range of material surfaces. Compatible materials (partial list):
Metal products, plastic products, ceramic ware, glass products, bamboo/wood products, leather fabrics, paper packaging, acrylic sheets, PVC boards, KT boards
Application Scenarios:
Personalized Customization — Phone cases, stickers, keychains, pens, USB drives, gift packaging, wine bottle labels
Gift Packaging — Tea boxes, gift boxes, premium gift boxes, wine box customization
Signage & Identification — PVC cards, acrylic signs, metal nameplates, KT board signs
Home Decor — Home labels, decorative tags, tile patterns, leather artwork
Industrial Applications — Electronics labels, yacht decals, equipment nameplates
Key Advantages of UV Labels: The transfer process is fast and convenient — just peel, place, and press. The adhesive stays on the surface while the carrier film is removed, leaving a clean, film‑free finish. Under light, the labels exhibit a stunning 3D embossed effect with a translucent, glossy appearance. They offer strong adhesion, excellent scratch resistance, and leave no residue. The adhesive bonds more firmly over time, becoming stronger as it cures. Compatible with acrylic, PVC, metal, glass, marble, curved packaging, and more.
Q1: What are the main differences between the 60E6‑K and the 60F4?
A: The 60E6‑K is Taotech Digital's flagship ultra‑high‑speed model. Key differences include:
More printheads: 6 i3200 industrial‑grade vs 4 i1600 printheads
Dramatically faster: 30m²/h at 4pass vs 6.8m²/h at 8pass — over 4× higher throughput
Advanced printhead technology: i3200 industrial‑grade with 40‑50kHz firing frequency, more than 2× faster than i1600
Upgraded platform: honeycomb widened platform with superior material adhesion
Upgraded feeding: heavy‑duty sensor‑based system, 200m single‑batch loading
Target audience: 60F4 suits medium‑sized producers; 60E6‑K is for factory‑level production with 500+ daily orders
Q2: Who is this machine best suited for?
A: The 60E6‑K is ideally suited for large‑scale UV label processing factories with 500+ daily orders and production enterprises with overwhelming order volumes. Its 30m²/h ultra‑high speed, 200m continuous roll feeding, and industrial heavy‑duty frame are designed for maximum throughput and 24/7 non‑stop production.
Q3: What are the advantages of 6 i3200 printheads?
A: The Epson i3200 is an industrial‑grade printhead with key advantages:
High speed: 40‑50kHz firing frequency, more than 2× faster than entry‑level heads
High precision: minimum droplet size 3.5pl, achieving 1440dpi+ precision
Long lifespan: 3‑5 years service life
Reliable: with Taotech's active white ink circulation system, clogging frequency reduced by over 60%
Q4: What are the benefits of the honeycomb widened platform?
A: The honeycomb widened platform features a unique honeycomb structure design with key benefits:
Stronger adhesion: material is firmly held to the platform, ensuring no shifting during printing
Flat printing without arching: effectively prevents material arching or wrinkling at high speeds
Smoother feeding: works with the heavy‑duty frame to ensure output precision during extended high‑speed operation
Q5: How long do UV labels last? Will they fall off easily?
A: On hard, smooth surfaces in indoor environments at room temperature, UV labels can be used for extended periods. The finished products offer excellent initial tack, temperature resistance, and long‑term durability. The adhesive becomes firmer over time, providing stronger adhesion. They are scratch‑resistant, wear‑resistant, residue‑free.
Q6: Is daily maintenance complicated? Are the printheads prone to clogging?
A: The 60E6‑K features auto‑cleaning + auto‑moisturizing dual maintenance functions, effectively extending printhead life and reducing maintenance costs. Combined with the active white ink circulation system, clogging frequency is reduced by over 60%. Daily maintenance is simple — maintain an optimal working environment of temperature 25°C‑30°C and humidity 50%‑75%.
Q7: What is the return on investment (ROI)?
A: As a flagship ultra‑high‑speed model, the 60E6‑K offers unparalleled productivity advantages. At 4pass mode (30m²/h), daily output far exceeds that of standard models. The total label‑making cost is approximately ¥19/m², while market prices can reach ¥40/m² — offering attractive profit margins. With sufficient orders, the payback period is extremely short.
Q8: What are the manufacturer's credentials? Is after‑sales support reliable?

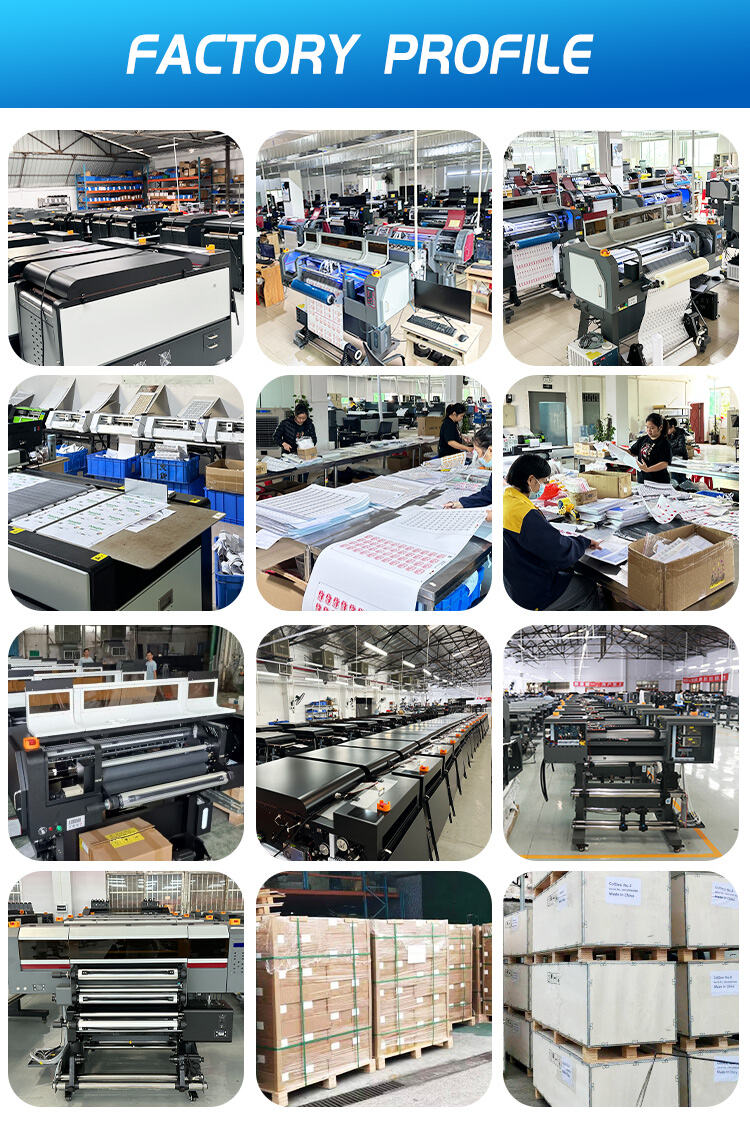

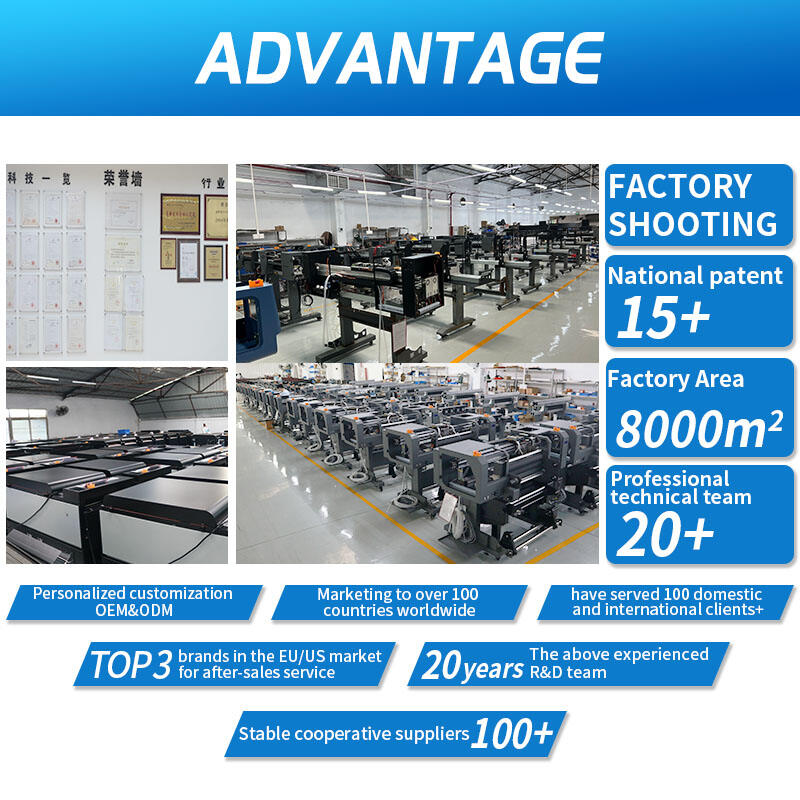

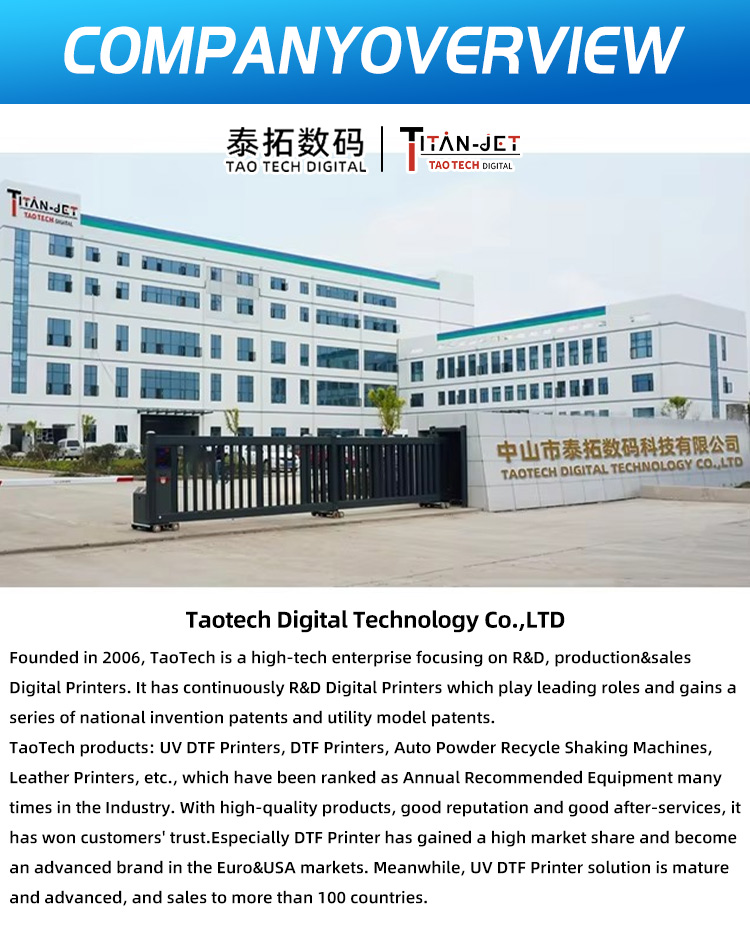

A: Taotech Digital was founded in 2006 and has 20 years of R&D experience in the printing equipment industry. The company has a deep strategic partnership with Epson and has received the Epson "FY25 Sales Contribution Award". With a 10,000m² standardized production facility and a dedicated UV label production workshop, our business network covers 100+ countries and regions. Our in‑house UV label workshop operates 24/7 in two shifts — every model is validated on our own production line before reaching customers. We offer a 1‑year whole‑machine warranty and comprehensive pre‑sales and after‑sales support.
Q9: What are the machine dimensions and weight? What are the installation requirements?

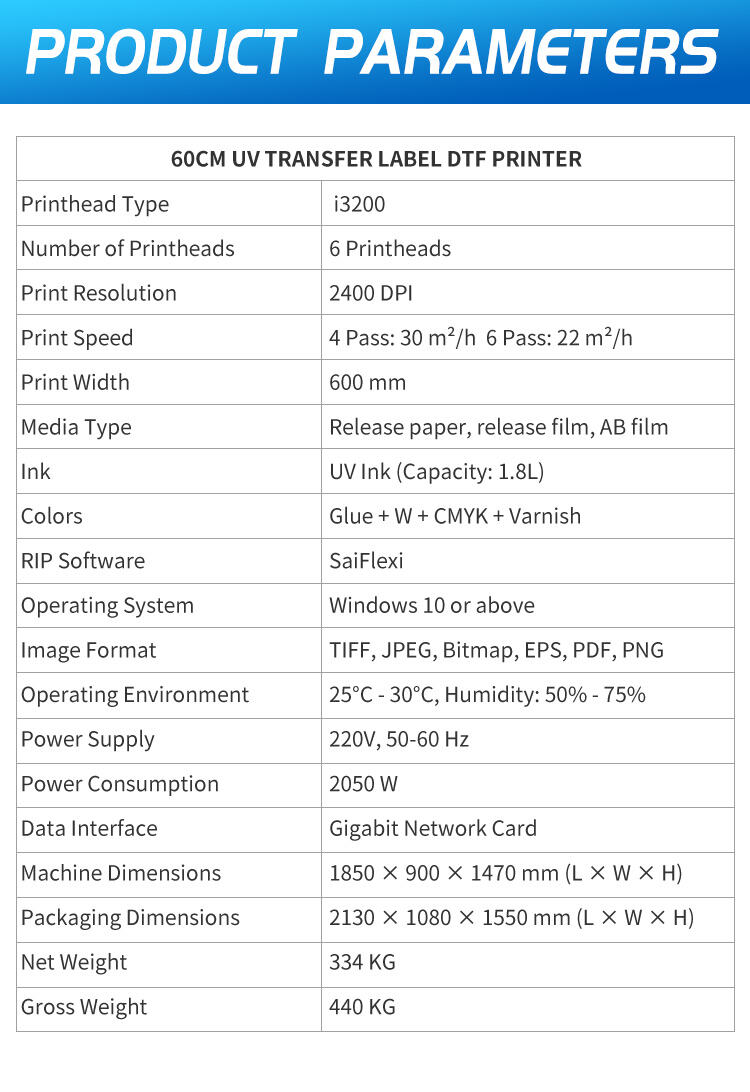

A: Machine size: 1850×900×1470mm (L×W×H) ; Net weight: 334KG. Please ensure sufficient operating space, place the machine on a flat and solid floor, and maintain a stable power supply (220V, 2050W).
